Transforming M.2 NVMe SSDs for Enterprise E1.S Applications with the ICY DOCK CP154

The ICY DOCK CP154 is a robust, full-metal converter engineered to adapt standard M.2 NVMe SSDs—including 2230, 2242, 2260, and 2280 sizes—into the 9.5 mm E1.S SSD form factor. Fully compliant with the SFF-TA-1006 interface, the CP154 bridges the gap between cost-effective M.2 storage solutions and high-performance, enterprise-grade E1.S server environments.

Seamless Integration of M.2 NVMe Drives into E1.S Ecosystems

Designed for system integrators, enterprise IT professionals, and engineers, the CP154 enables the use of widely available M.2 NVMe SSDs within E1.S server infrastructures. By precisely matching the 9.5 mm height, connector alignment, and mounting points of native E1.S SSDs, the CP154 ensures full compatibility with hot-swap E1.S drive trays, tool-less carriers, and server chassis that adhere to the SFF-TA-1006 standard. This makes it an ideal solution for data centers and on-site systems that demand rapid access, consistent system architecture, and flexible drive sourcing.

Enhanced Connector Protection and Mechanical Reliability

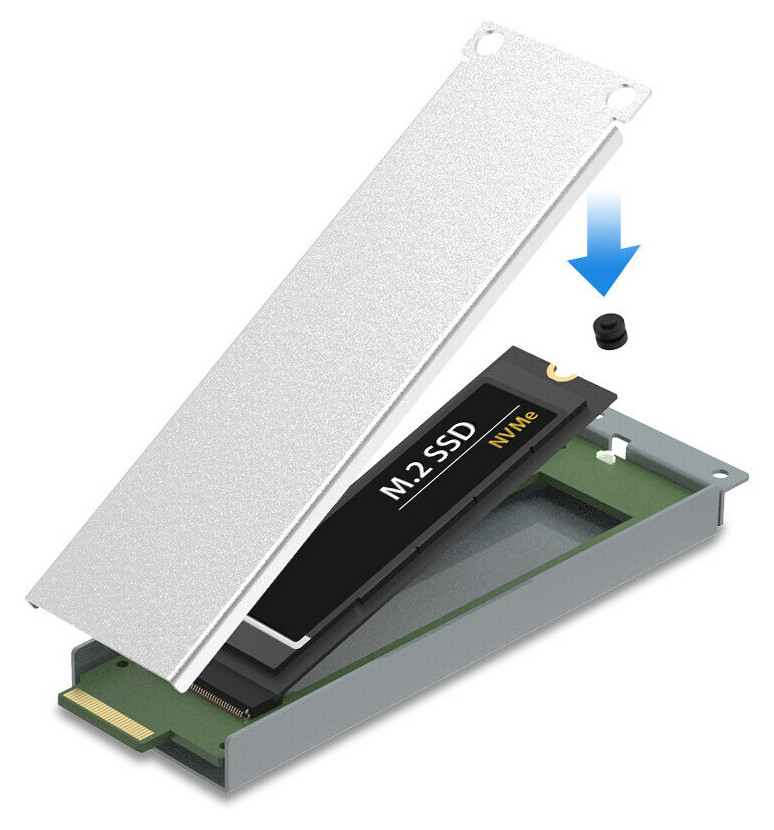

Unlike conventional passive adapters, the CP154 features an internal bridge connector that isolates the M.2 SSD’s edge contacts from direct mechanical stress. This innovative design significantly extends the lifespan of M.2 drives, especially in environments where frequent drive swaps are necessary—such as edge servers, maintenance-intensive appliances, or AI and machine learning testbeds. The converter’s rigid, full-metal enclosure not only provides structural integrity but also delivers passive cooling and effective electromagnetic interference (EMI) shielding.

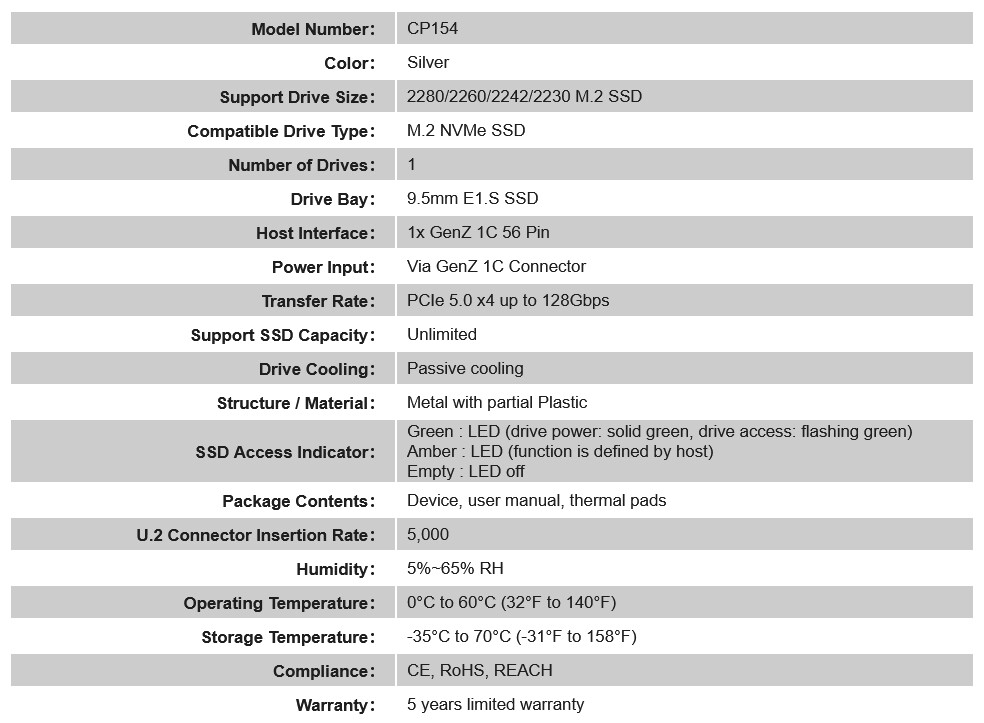

Key Features of the ICY DOCK CP154

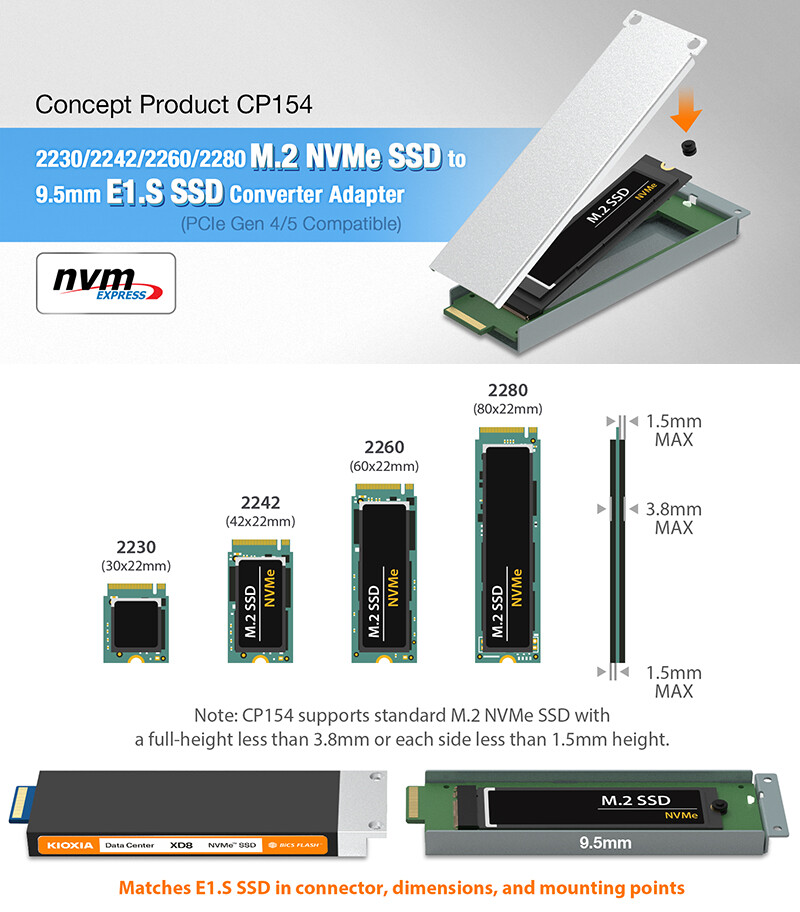

  • Converts standard M.2 NVMe SSDs (2230/2242/2260/2280) to the 9.5 mm E1.S SSD form factor
  • Fully compliant with E1.S mechanical and electrical specifications (SFF-TA-1006 and SFF-TA-1002)
  • Supports PCIe Gen 3, Gen 4, and Gen 5 NVMe SSDs for data rates up to 128 Gbps
  • Optimized for E1.S drive bays in enterprise servers, AI edge systems, and modular compute platforms

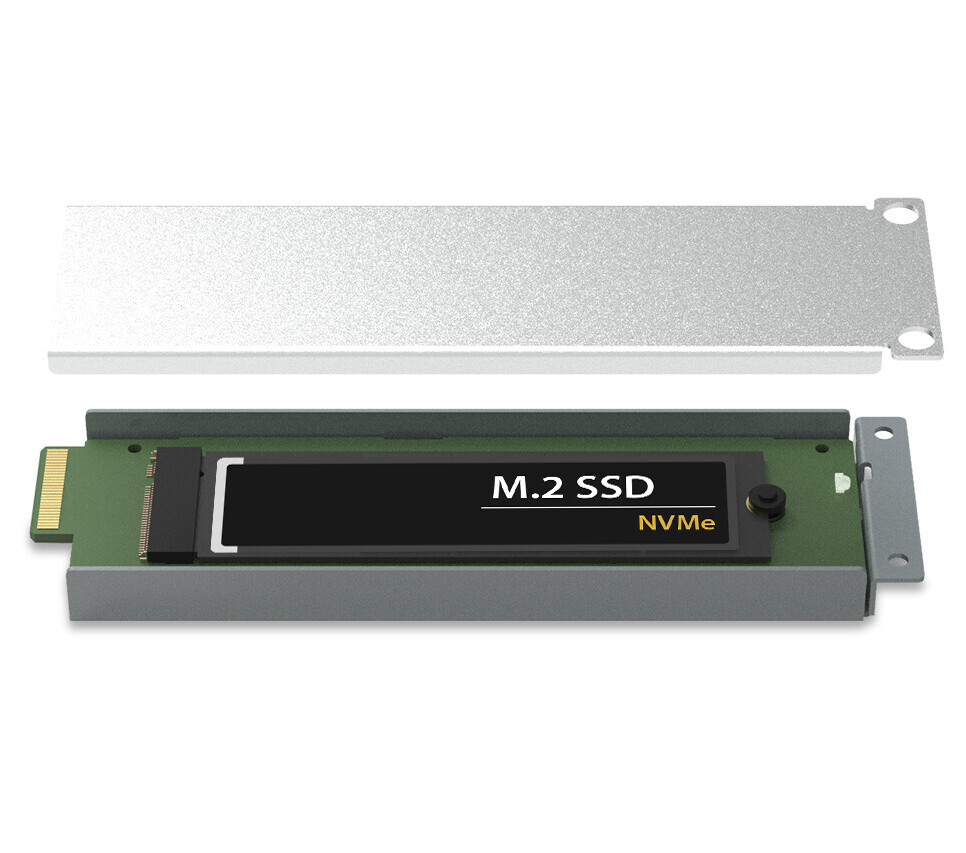

  • Internal bridge connector minimizes wear on M.2 connectors during frequent insertions and removals

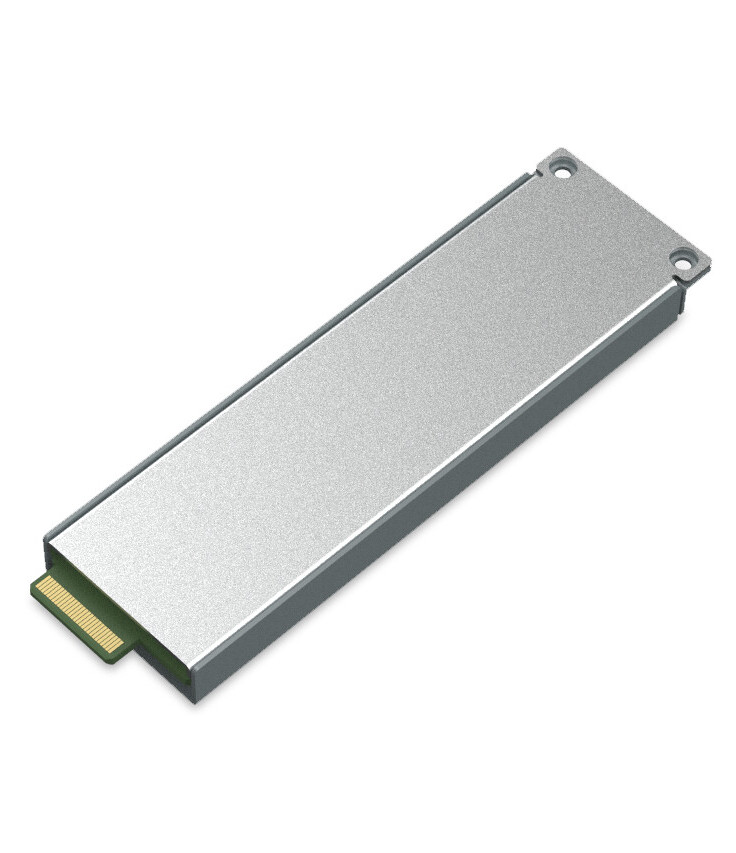

  • Full-metal housing ensures durability, EMI protection, and efficient thermal dissipation
  • Ideal for system builders, server OEMs, and platform engineers validating E1.S infrastructure

The ICY DOCK CP154 stands out as a reliable and versatile solution for integrating standard M.2 NVMe SSDs into advanced E1.S server environments, offering both mechanical protection and full compliance with enterprise storage standards.
